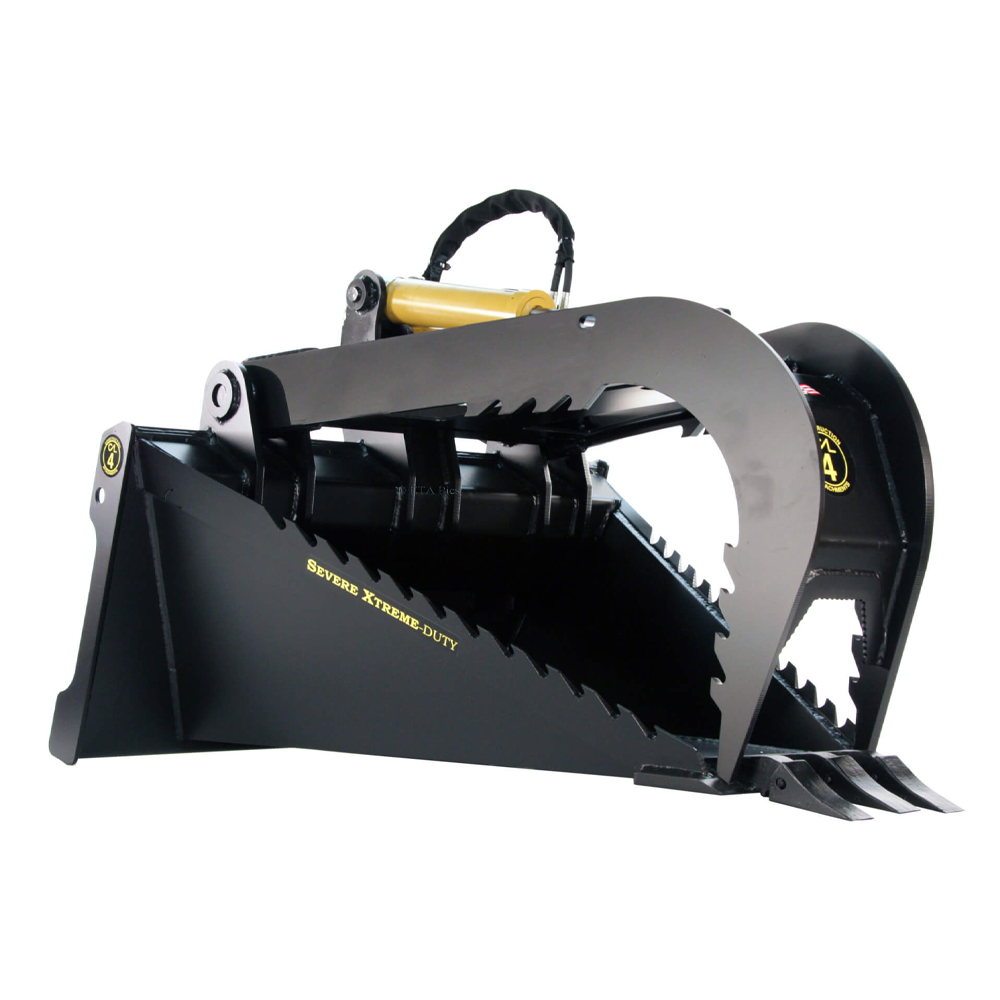

Stump Bucket Grapple SEVERE XTREME DUTY Attachment

Duty Rating: SEVERE XTREME
Horsepower: 101 - 120 HP, 121 - 150 HP
Machine Type: Industrial Tractor Loader Backhoe, Rubber Tire Loader, Tractor Loader, Track Loader, Skid Steer
Est Weight (lbs): 1008
Max Grapple Opening: 55"
Max Clamping Force: 4,100 lbs @ 3,000 psi

Description

THE SEVERE XTREME DUTY STUMP BUCKET GRAPPLE ATTACHMENT FEATURES A BUCKET BOTTOM WITH AN AGGRESSIVE TAPERED CUTTING EDGE

Designed for real cutting action. Its angled cylinder design maximizes strength while delivering over 4,100 lbs of clamp force at the tip max at 3,000 psi. A massive 55” grapple opening allows operators to take on demanding jobs with ease.

A — Bucket bottom reinforced and protected with a series of 1/2” x 2” ribs/wear bars across the entire bottom surface
B — Tapered cutting edge with CNC-cut tooth pattern allows real cutting action
C — Cylinder angle maximizes force while still offering a huge opening
D — Large diameter pins help reduce wear caused by repetitive use

FEATURES

  • Angled grapple frame and 3/4” material provide exceptional strength and rigidity
  • Specially designed load transfer plate
  • 3” bore cylinder generates over 4,100 lbs of clamping force at the tip max at 3,000 psi
  • Price includes hydraulic hoses and fittings
  • Over 55” grapple opening
